Small displays are often treated as easy components because they occupy little PCB and enclosure space. In practice, a two-inch TFT can create just as many integration problems as a much larger screen.

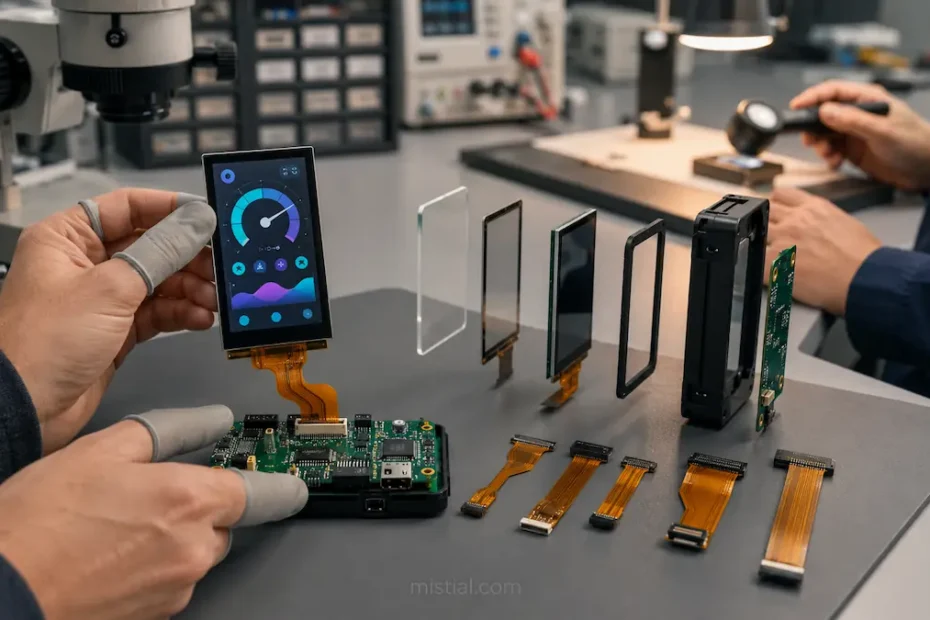

Reaper’s 2.01 Inch IPS TFT LCD Module uses a 240×296 IPS panel with an SPI interface and JD9853 driver IC. The standard module has an active area of approximately 32.04 × 39.52 mm and supports optional capacitive touch, while the FPC can also be customized for project requirements.
For many embedded projects, the interface deserves to be checked as early as the resolution.
SPI is convenient for compact systems because it uses relatively few signal lines, but refresh performance depends on how much image data the application needs to move. A static instrument screen and an animated user interface place very different demands on the same display.
FPC design deserves attention before the housing is finalized.
Reaper lists an 8-pin interface for this standard module and notes that the FPC can be customized. Changing connector position, cable length or pin definition may make PCB routing easier, but those details should be frozen before mass production so that the electrical and mechanical drawings remain aligned.
Brightness should also be specified according to the actual environment.
The specification table on the page lists 400 nits with optional customization. Rather than assuming one brightness figure suits every application, I would confirm the required luminance after considering the cover lens, viewing distance and expected ambient light.
If touch is required, the buyer should confirm which touch technology is actually available for the customized module and whether it matches the intended operating environment. The touch panel, cover lens and enclosure should also be reviewed as one assembly rather than as three unrelated parts.
Operating temperature is another useful screening point. Reaper lists this module for -20°C to +70°C operation, which makes it suitable for a wider range of embedded and industrial equipment than displays intended only for controlled indoor conditions.
The Reaper LCD homepage presents the company as a custom display supplier covering TFT LCD, monochrome LCD, OLED and touch solutions for industrial, medical and smart-device applications.
For a small TFT module, successful customization usually comes down to interface, FPC geometry, brightness and touch requirements. If those are defined early, the display is much easier to integrate into the final product.
